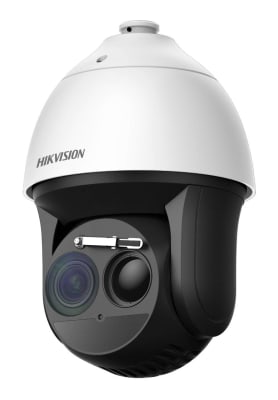

DOMO PTZ IP TERMICO/OPTICO 50MM DS-2TD4137-50/W HIKVISION FC2TD413750W

Ficha técnica

DS-2TD4137-50/W

• Módulo Térmico
• Sensor De Imagen VOx Uncooled Focal Plane Arrays
• Resolución384 × 288
• Intervalo De Píxeles17 ?m
• Respuesta De Waveband8 ?m to 14 ?m
• NETD Less than 40 mK (@ 25 °C,F#=1.0)
• Longitud Focal50 mm
• Modo De Enfoque Athermalized
• IFOV0.34 mrad
• AperturaF1.0
• Campo De Visión7.5° × 5.6° (H × V)
• Min. Distancia De Enfoque 50m
• Zoom Digital ×2, ×4, ×8

• Módulo Óptico
• Sensor De Imagen 1/1.8? Progressive Scan CMOS
• Resolución 2688 × 1520, 4 MP
• Iluminación Mínima Color: 0.005 Lux @(F1.3?AGC ON), B/W: 0.001 Lux @(F1.3?AGC ON)
• Campo De Visión 56.6° ×33.7° (H × V)~1.8° ×1.0° (H × V)
• Longitud Focal 6-240 mm, 40x
• Aperture (Range) F1.3-F4.6
• Modo De Enfoque Semi-auto/Manual
• Zoom Digital ×2, ×4, ×8, ×16
• Velocidad De Obturación 1s to 1/30,000s
• WDR 120 dB
• Desempañador Óptico Yes

• Image Effect
• Imagen En Imagen Display partial image of thermal channel on the full screen of optical channel
• Target Coloration Supported in white hot and black hot mode

• PTZ
• Rango De Movimiento Pan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip)
• Velocidad De Movimiento Horizontal (Pan) Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s
• Velocidad De Vertical (Tilt) Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s
• Zoom Proporcional Yes
• Preajustes 300 in total, 273 are configurable.
• Escaneo De Patrulla 8; Up to 32 Presets Per Patrol
• Patrón De Escaneo 4; More Than 10 Minutes Per Pattern
• Memoria De Apagado Yes
• Parque Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• PT Status Turn On/Turn Off
• Tarea Programada Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output

• Iluminador
• Distancia IR Up to 150m
• Intensidad Y Ángulo IR Automatically adjusted

• Función Inteligente
• VCA Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
• Medida De Temperatura Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
• Rango De Temperatura-20 °C to 150 °C (-4 °F to 302 °F)
• Precisión De La Temperatura± 8 °C (±14.4 °F)
• Detección De Fuego Dynamic fire detection, up to 10 fire points detectable.
• Detección De Fumar Support
• Video And Audio
• Main Stream

  Thermal channel

  50fps(1920 × 1080, 1280 × 960, 1280 × 720?704×576?640×512?384×288)

  Optical channel

  50Hz:25fps(2688 × 1520?1920 × 1080, 1280 × 960, 1280 × 720)

  60Hz:30fps(2688 × 1520?1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  Thermal channel

  50fps(704×576?640×512?384×288)

  Optical channel

  50Hz:25fps(704 × 576, 352 × 288)

  60Hz:30fps(704 × 576, 352 × 288)

• Compresión De Vídeo

  Main stream: H.265+/H.265/H.264+/ H.264

  Sub-stream: H.265/H.264/MJPEG

• Compresión De Audio
• G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
• Red
• Protocolos IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Almacenamiento En Red MicroSD/SDHC/SDXC card (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• API ISAPI, HIKVISION SDK, third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T)
• Vista En Vivo Simultánea Up to 20 channels
• Nivel De Usuario/Operador Up to 32 users, 3 levels: Administrator, Operator, User
• Seguridad User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
• Cliente iVMS-4200, Hik-Connect
• Navegador Web Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +

• Interfaz
• Entrada De Alarma 7-ch inputs (0-5 VDC)
• Salida De Alarma 2-ch relay outputs, alarm response actions configurable
• Acción De Alarma Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
• Entrada De Audio 1, 3.5 mm Mic in/Line in interface. Line input: 2 – 2.4 V [p-p], output impedance: 1 K? ± 10%
• Salida De Audio Linear Level; Impedance: 600 ?
• Interfaz De Comunicación

  1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

  1, RS-485 interface

• Salida De Video Analógico 1.0 V [p-p]/75 ?, BNC for thermal channel

• General
• Idioma Del Cliente Web

  32 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

• Fuente De Alimentación 24 VAC ± 25%, 24VDC, 48VDC
• Consumo De Energía

  24VAC ± 25%: 5 A, max. 65 W

  24VDC: 2.5A, max. 65 W

  48VDC: 1.25V, max. 65 W

  Hi-PoE (Max. 65 W)

• Temperatura De Trabajo/Humedad From -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
• Limpiador De Lente Yes
• Nivel De Protección IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Dimensión 220 mm × 410 mm × 198.6 mm (8.66? × 16.15? × 7.82?)
• Approx. 9kg (19.84 lb)
